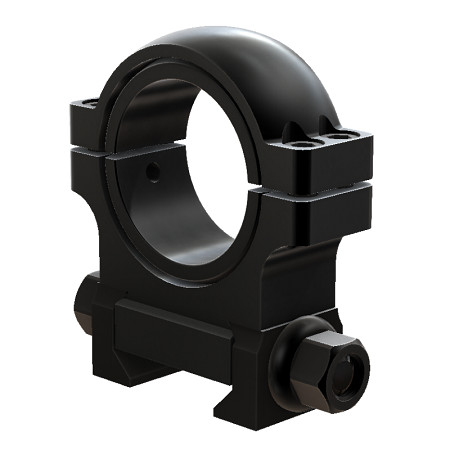

25mm Low Sus-Tac AWE Scope Rings With 20 MOA inserts

The 25mm Low Sus-Tac AWE Scope Rings With 20 MOA inserts provide an adjustable mounting system for rifle scopes with a 25mm main tube. In addition, the AWE design combines interchangeable elevation bushes with windage adjustment to help align the scope with your rifle.

25mm Low Sus-Tac AWE Scope Rings With 20 MOA inserts

Unlike fixed-angle rings, the SUS-TAC AWE system lets you adjust the scope’s elevation offset by changing the MOA bushes. As a result, you can make better use of the scope’s available elevation travel without replacing the complete mounts.

For example, the specified bush combinations provide elevation offsets of 0, −10, −20, −30 or −40 MOA. However, the bushes must be installed in the correct front and rear positions. Therefore, consult the SUS-TAC AWE installation instructions before assembly.

In addition, the adjustable windage clamps help correct lateral misalignment between the rifle action and Picatinny rail. The manufacturer specifies 120mm ring centres for the stated MOA configurations. Consequently, check the mounting position and ring spacing before installation.

The mounts use carbon steel with a matt GunKote finish. However, low rings may not provide sufficient clearance for every scope. For this reason, check the objective bell, barrel clearance and required eye relief before fitting the mounts.

Because correct bush alignment is essential, keep each upper and lower bush half matched to its original pair. Furthermore, never combine different MOA values within a single ring. Instead, follow the manufacturer’s configuration table to achieve the required elevation offset without mismatching the bushes.

For installation, first finger-tighten the cap screws and confirm that the scope sits fully against the bushes. Then tighten the screws alternately to the initial 5 in-lb setting specified in the instructions. However, never exceed the scope manufacturer’s recommended torque.

Next, adjust the windage clamps to align the scope reticle with the rifle bore. After alignment, tighten the windage nuts in alternating stages, beginning at 10 in-lb. Finally, follow the SUS-TAC instructions to reach the specified final windage nut torque of 50 in-lb.

Key Features and Specifications

• Designed for rifle scopes with a 25mm main tube.
• Low-height SUS-TAC AWE mounting system.
• Supplied with 20 MOA inserts.
• Interchangeable MOA bush configurations.
• Configurable elevation offsets of 0, −10, −20, −30 or −40 MOA using the specified combinations.
• Adjustable windage clamps for lateral alignment.
• Carbon steel construction with a matt GunKote finish.
• Picatinny rail interface.
• Recommended ring spacing: 120mm centres.
• Initial cap screw torque: 5 in-lb, subject to the scope manufacturer’s limit.
• Final windage nut torque: 50 in-lb, following the manufacturer’s procedure.

Overall, these adjustable scope rings provide flexibility when setting scope elevation and alignment. In addition, the interchangeable bushes let you select the required offset from the manufacturer’s supported configurations. For related mounting options, see the scope rings and bases range. Finally, confirm the bush positions and torque settings in the manufacturer’s instructions before installation.
