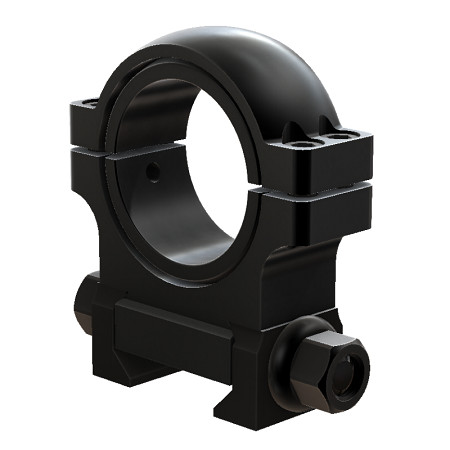

34mm Low Sus-Tac AWE Scope Rings With 0 MOA inserts

The 34mm Low Sus-Tac AWE Scope Rings With 0 MOA inserts provide an adjustable mounting system for rifle scopes with a 34mm main tube. In addition, the AWE design combines elevation bush options with windage adjustment to help align the scope with your rifle.

34mm Low Sus-Tac AWE Scope Rings With 0 MOA inserts

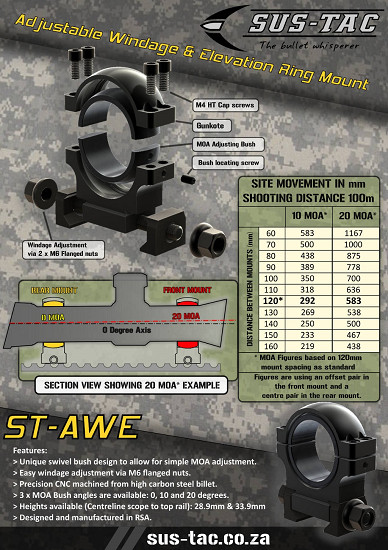

Unlike fixed mounts, the SUS-TAC AWE system lets you configure elevation offset by changing the matched MOA bushes. Therefore, the supplied 0 MOA inserts provide a neutral starting configuration. However, the AWE system can also use compatible MOA bush sets to create the offset required for your setup.

For example, the manufacturer’s configuration table covers offsets of 0, −10, −20, −30 and −40 MOA. As a result, you can tailor the scope’s available elevation travel to your needs. Before changing the bushes, consult the SUS-TAC AWE installation instructions to confirm the correct front and rear positions.

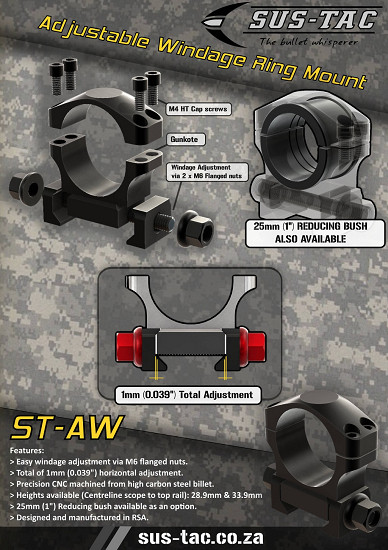

In addition, the adjustable windage clamps help correct lateral misalignment between the rifle action and Picatinny rail. Accordingly, the manufacturer specifies 120mm ring centres for the listed MOA configurations. Consequently, check the mounting position and eye relief before tightening the mounts.

The rings use carbon steel with a matt GunKote finish. However, low-height rings may not clear every objective bell or barrel profile. For this reason, check the scope dimensions and required clearance before installation.

Because each bush set is supplied as a matched pair, keep its upper and lower halves together. Furthermore, never mix different MOA values within one ring. Instead, follow the manufacturer’s table to achieve the intended offset and avoid damage during assembly.

First, finger-tighten the cap screws and check that the scope sits fully against the bushes. Then tighten the screws alternately to the initial 5 in-lb setting stated in the guide. However, never exceed the scope manufacturer’s recommended torque.

Next, use the adjustable windage clamps to align the reticle with the rifle bore. After alignment, tighten the windage nuts in alternating stages, starting at 10 in-lb. Finally, follow the SUS-TAC instructions to reach the specified final windage nut torque of 50 in-lb.

Key Features and Specifications

• Designed for rifle scopes with a 34mm main tube.
• In addition, the low-height AWE mounts provide adjustable windage.
• Supplied with 0 MOA inserts for a neutral elevation configuration.
• Furthermore, compatible MOA bush sets allow specified elevation offsets of 0, −10, −20, −30 or −40 MOA.
• The mounts use carbon steel with a matt GunKote finish.

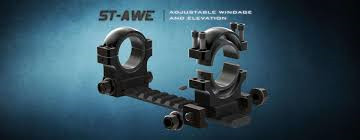

• Also, the design fits a Picatinny rail.
• For correct elevation values, use the recommended 120mm ring centres.
• Initially, tighten cap screws to 5 in-lb, subject to the scope manufacturer’s torque limit.
• Finally, tighten windage nuts in stages to the specified 50 in-lb setting.

Overall, these mounts let you adjust scope elevation and lateral alignment to suit your rifle. In addition, the supplied 0 MOA inserts offer a neutral configuration when no built-in elevation offset is required. For related mounting options, see the scope rings and bases range. Finally, confirm the bush positions and torque settings in the manufacturer’s instructions before installation.
