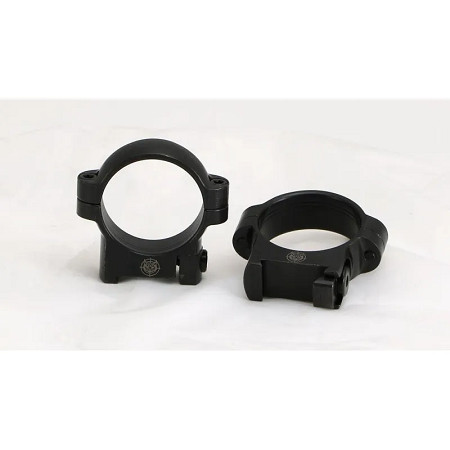

Lynx 30mm Med Ring Set Brno/CZ 550 – Steel

The Lynx 30mm Med Ring Set Brno/CZ 550 – Steel provides medium-height steel scope rings for compatible Brno and CZ 550 rifles. The rings accept scopes with a 30 mm main tube and fit the matching receiver mounting profile. Before fitting them, confirm that your rifle has the correct dovetail and that the scope has enough clearance.

Lynx 30mm Med Ring Set Brno/CZ 550 – Steel

This Lynx ring set suits compatible Brno and CZ 550 actions with the matching receiver dovetail. Therefore, it offers a direct mounting option without requiring a separate Picatinny rail. However, check the rifle model and receiver dimensions before installation, especially if someone has altered the original mounting system.

Lynx specifies steel construction for its mounting range. The medium-height design provides a balance between scope clearance and mounting height. As a result, it can suit hunting optics where the shooter wants a practical cheek position without raising the scope more than necessary. However, the ideal height also depends on the objective bell, barrel contour, bolt handle and any rear sight.

The matching Lynx 30 mm medium ring model has a listed height of approximately 12.4 mm. This measurement runs from the top of the receiver to the underside of the ring, where the scope tube rests. For example, a large objective bell may need more clearance than a compact hunting scope. Since rifle and optic combinations differ, check the complete setup before tightening the rings.

The 30 mm specification refers to the scope’s main tube, not the receiver dovetail. Also, confirm the tube diameter in your scope manufacturer’s documentation before installation. During fitting, position the scope to achieve comfortable eye relief and a level reticle. Then check that the bolt operates freely and that the objective bell clears the barrel throughout the required adjustment range.

In addition, tighten the ring fasteners according to the manufacturer’s instructions and use suitable tools to protect the screws and scope tube. For further information, consult the official Lynx mounts and rings range. You can also compare other mounting options in our scope rings and bases range.

Key Features and Specifications

• Steel construction.
• Medium-height ring set for compatible Brno and CZ 550 rifles.
• 30 mm scope-tube diameter.
• Receiver-mounted design for the matching dovetail profile.
• Approximately 12.4 mm medium height.
• Check objective clearance, bolt movement and receiver fit before installation.

Overall, the Lynx 30mm Med Ring Set Brno/CZ 550 – Steel provides a medium-height steel mounting solution for compatible rifles and 30 mm scopes. Therefore, confirm the receiver profile and scope clearance before installation.
