ynx LX2 5-20×50 M20 Gen2

Product Description

The Lynx LX2 5-20×50 M20 Gen2 is a second focal plane riflescope designed for medium- to long-range hunting and target shooting. It combines 5–20x magnification with a 50mm objective lens, a 30mm main tube and the distinctive M20 illuminated reticle.

The 5–20x magnification range provides flexibility across different shooting distances. At lower magnification, the wider field of view helps with target acquisition and closer shots. At higher magnification, the 20x setting provides greater target detail for longer-range shooting. As a result, the scope offers a useful balance between field use and precision shooting.

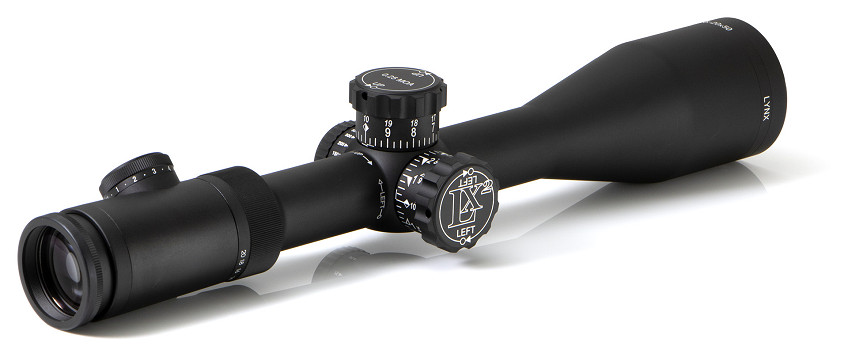

Lynx LX2 5-20×50 M20 Gen2 Riflescope

In addition, the 50mm objective lens provides a large entrance pupil for a detailed sight picture across the magnification range. The fully multi-coated optical system also supports good light transmission and image contrast.

Furthermore, the 30mm one-piece main tube provides a strong platform for the adjustment system. The scope uses tactical windage and elevation turrets with clear, large markings that make the adjustment values easier to read. Therefore, the shooter can identify turret settings quickly while making elevation or windage corrections.

The scope also features a zero-stop elevation turret. As a result, the shooter can establish a defined zero position and return to it after making elevation adjustments.

Because the M20 reticle uses a second focal plane design, its apparent size remains constant as magnification changes. The reticle’s MOA references, however, are calibrated for use at 20x magnification.

Lynx LX2 5-20×50 M20 Gen2 Reticle

The M20 illuminated reticle is one of the key features of this scope. In addition to providing a conventional aiming reference, it incorporates an integrated ranging system for estimating target distance.

The reticle uses graduated references that are calibrated at 20x. Furthermore, the horizontal and vertical markings provide additional MOA holdover references for elevation and windage corrections.

A particularly useful feature is the reticle range-finding scale. It is designed around a 20cm target height and provides a reference for estimating distances from approximately 200 to 500 metres. Therefore, the shooter can use the reticle itself as a basic ranging aid rather than relying entirely on a separate rangefinder.

The reticle also features green illumination with 11 brightness settings. As a result, the illuminated aiming references can remain easier to identify as ambient light changes.

Because the reticle is calibrated at 20x, the ranging and MOA references should be used at the specified magnification for their intended values. This makes the M20 particularly suited to shooters who want an integrated ranging reference without moving to a more complex tactical reticle.

MOA Turrets and Zero Stop

The Lynx LX2 M20 Gen2 uses 1/4 MOA adjustment clicks for elevation and windage. In addition, the tactical turrets feature large, clearly marked adjustment scales that make the selected setting easier to identify.

The scope provides approximately 50 MOA of elevation and 50 MOA of windage adjustment. Furthermore, the turret system provides a substantial adjustment range for medium- and long-range shooting.

The elevation turret incorporates a zero-stop system. Therefore, once the rifle has been zeroed, the shooter can return the elevation turret to the established zero reference after making corrections for distance.

The tactile adjustment controls also provide a clear reference when making corrections. As a result, the turret design is practical for shooters who regularly dial elevation rather than relying entirely on reticle holdovers.

Lynx LX2 5-20×50 M20 Gen2 Scope

The scope uses a 30mm one-piece main tube and fully multi-coated optical elements. In addition, the nitrogen-filled construction helps reduce internal fogging when temperatures or environmental conditions change.

The side-focus parallax adjustment operates from 25 metres to infinity. Therefore, the shooter can adjust the focus for both relatively close targets and extended shooting distances.

The scope provides approximately 96–103mm of eye relief across the magnification range. Furthermore, the field of view extends from approximately 3.65° at low magnification to around 0.97° at high magnification.

At approximately 353mm long and 800g, the LX2 M20 Gen2 is a substantial precision-oriented optic. For this reason, the rifle, mounting system and intended application should all be considered when selecting the scope.

Lynx LX2 5-20×50 M20 Gen2 for Hunting and Precision Shooting

The Lynx LX2 5-20×50 M20 Gen2 suits medium- to long-range hunting, target shooting and open-country applications. In addition, the 5–20x magnification range provides useful flexibility when shooting at varying distances.

The M20 reticle’s integrated ranging feature makes this model particularly useful for shooters who want a distance reference within the reticle itself. Meanwhile, the multiple MOA references provide additional holdover and windage options.

The large turret markings also make the adjustment values easier to identify in the field. Furthermore, the zero-stop system provides a consistent reference when returning to the rifle’s established zero.

When mounting the scope, use compatible 30mm scope rings or a suitable 30mm scope mount. Also, check the required ring height and mounting position before installation.

For more scope options, browse our Rifle Scopes. You can also view our Scope Rings & Bases for compatible mounting solutions.

For another Lynx scope, see the Lynx LX2 5-20×50 SAH. Alternatively, compare it with the Lynx LX3 2.5-15×50 RF Mil if you are looking for a lower magnification scope with a dedicated ranging reticle.

For additional manufacturer information, visit Lynx Optics.

Key Features

• 5–20x magnification range
• 50mm objective lens
• Second focal plane (SFP)
• M20 illuminated reticle
• Integrated reticle range-finding feature
• 20cm target ranging reference
• Range-finding scale calibrated for approximately 200–500m
• MOA holdover and windage references
• Green reticle illumination
• 11 illumination brightness settings
• 1/4 MOA click value
• Large, clearly marked tactical turrets
• Approximately 50 MOA elevation adjustment
• Approximately 50 MOA windage adjustment
• Zero-stop elevation turret
• Side-focus parallax adjustment
• 25m to infinity parallax range
• 96–103mm eye relief
• 3.65–0.97° field of view
• 30mm one-piece main tube
• Fully multi-coated optics
• Nitrogen-filled construction
• 353mm overall length
• 800g weight
• 1000G recoil resistance

Product Specifications

Brand: Lynx
Model: LX2 5-20×50 M20 Gen2
Magnification: 5–20x
Actual Magnification: 5.21–19.6x
Objective Lens: 50mm
Focal Plane: Second Focal Plane (SFP)
Reticle: M20 Illuminated
Reticle Plane: SFP
Reticle Illumination: Green
Illumination Settings: 11
Tube Diameter: 30mm
Click Value: 1/4 MOA
Elevation Adjustment: Approximately 50 MOA
Windage Adjustment: Approximately 50 MOA
Zero Stop: Yes
Parallax: Side focus, 25m to infinity
Eye Relief: 96–103mm
Field of View: Approximately 3.65–0.97°
Exit Pupil: 10–2.5mm
Lens Coating: Fully multi-coated
Construction: One-piece main tube
Waterproof: Yes
Fogproof: Nitrogen purged
Recoil Resistance: 1000G
Length: 353mm
Weight: 800g
Country of Manufacture: Japan

MOA@20 Illuminated SFP Reticle
