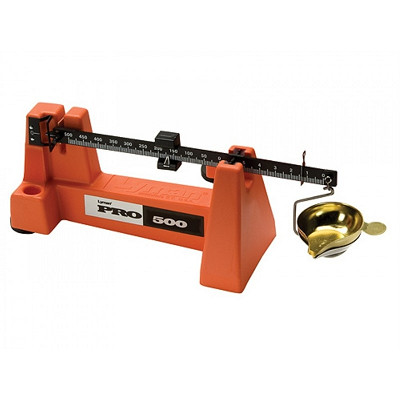

Lyman Pro 500 Reloading Scale

The Lyman Pro 500 Reloading Scale is a mechanical beam scale designed for weighing powder charges and other suitable reloading components. It has a 505-grain capacity and provides readings in 0.1-grain increments, making it a practical weighing option for the reloading bench.

Lyman Pro 500 Scale Features

The Pro 500 uses a high-impact styrene base with a large leveling wheel. In addition, dual agate bearings support the beam, while a magnetic dampener helps it settle after adjustment.

The large poise provides the main weight setting, while the smaller poise provides fine adjustment. Therefore, the user can combine both readings to determine the total weight of a charge.

The scale has a maximum capacity of 505 grains. Furthermore, the small poise provides 0.1-grain increments, allowing fine adjustment when checking powder charges.

Because the scale uses a mechanical beam, it does not require batteries or an external power source. As a result, it can remain ready for use on a reloading bench without relying on electrical power.

Lyman Pro 500 Calibration

Place the scale on a stable, level surface before use. Keep it away from drafts and vibration because movement can affect the beam position.

Move both poises to their zero positions and use the leveling adjustment to bring the beam pointer to zero. Recheck the zero whenever the scale is moved or before beginning a weighing session.

To weigh a powder charge, place the charge in the weighing pan and adjust the large and small poises until the beam returns to its balanced position. Read the large poise first and then add the smaller poise value.

The scale provides a useful way to check a powder measure during setup and loading. However, it only measures weight and does not determine whether a particular powder charge is safe.

Always use current published load data for the specific cartridge, bullet and powder combination. In addition, check the zero regularly to help maintain consistent measurements.

For more reloading equipment, browse our Reloading Equipment. You can also view our Powder Measures & Scales.

For additional manufacturer information, visit Lyman Products.

Product Specifications

Brand: Lyman
Product: Pro 500 Reloading Scale
Type: Mechanical beam scale
Capacity: 505 grains
Resolution: 0.1 grain
Main Poise: 0–500 grains
Small Poise: 0–5 grains
Small Poise Increments: 0.1 grain
Measurement Unit: Grains
Base: High-impact styrene
Bearings: Dual agate bearings
Dampener: Magnetic dampener
Power: No batteries or external power required

Important

Use the scale on a stable, level surface and protect it from drafts and vibration. Follow the manufacturer’s operating instructions and always use current published load data when weighing powder charges.
