Akra Legacy X 4-32×56 FFP MRAD

Product Description

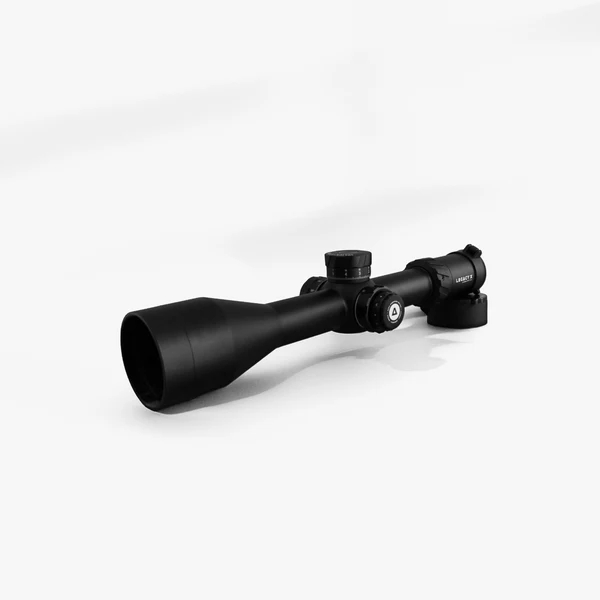

The Akra Legacy X 4-32×56 FFP MRAD is a first focal plane riflescope designed for hunting, precision shooting and long-range applications. It combines 4–32x magnification with a 56mm objective lens for a wide range of shooting distances.

At 4x, the scope provides a wider field of view for closer targets and hunting situations. At higher magnification, the 32x setting provides greater target detail for longer-range shooting. As a result, the Legacy X can suit both field and precision shooting applications.

Akra Legacy X 4-32×56 FFP Riflescope

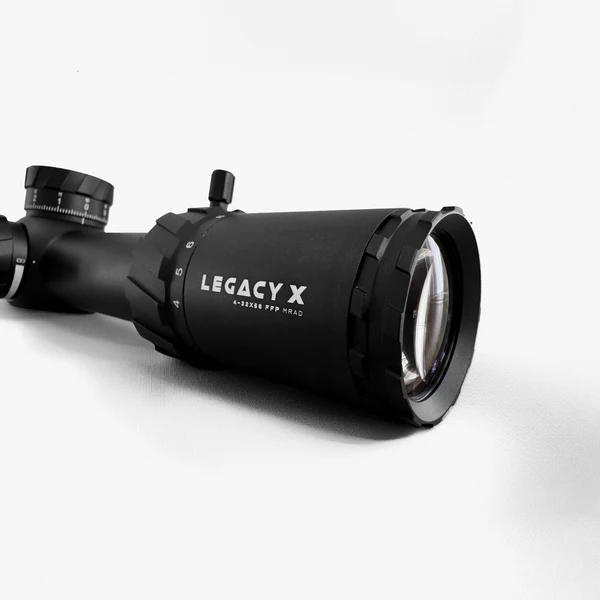

In addition, the 56mm objective lens supports a clear sight picture and useful light transmission. The scope uses ED-X glass and fully multi-coated lenses to provide clear detail, colour accuracy and contrast.

Furthermore, the scope features a 34mm main tube and 0.1 MIL adjustment clicks. Therefore, shooters can make precise elevation and windage corrections when setting up for different distances.

The first focal plane design keeps the reticle’s subtensions consistent throughout the magnification range. Because of this, the shooter can use the reticle references from 4x through to 32x.

Akra Legacy X 4-32×56 FFP MRAD Reticle

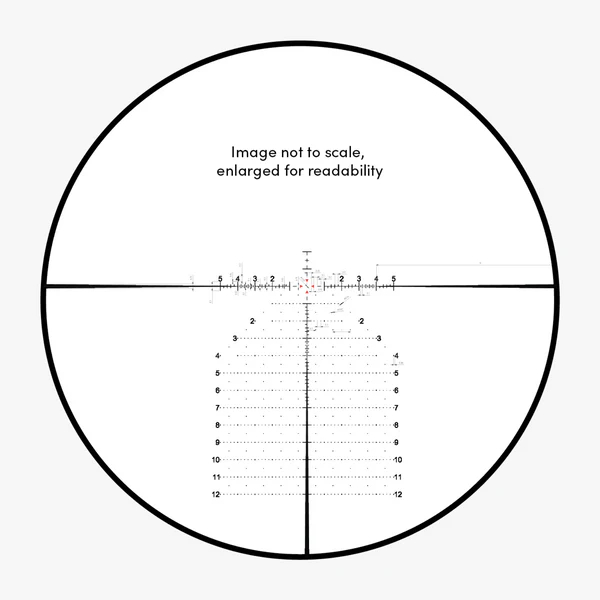

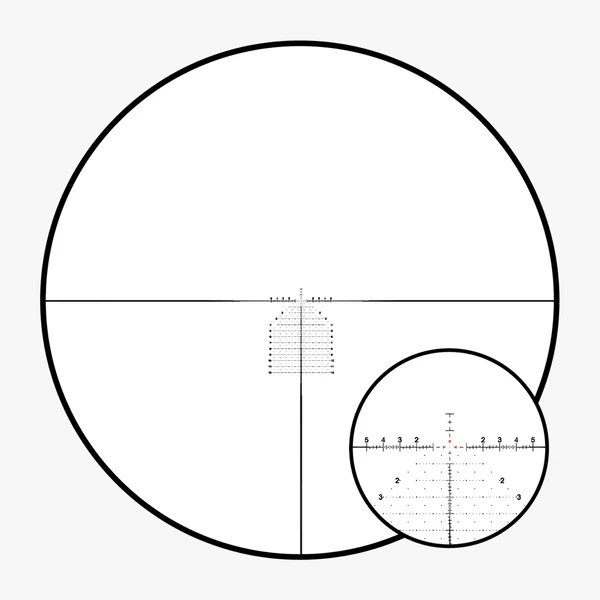

The R1X FFP MRAD reticle is an etched-glass Christmas tree reticle designed for hunting and precision shooting. In addition, it uses 0.2 MRAD subtensions for detailed elevation and windage hold references.

The reticle features a floating illuminated centre dot for a precise aiming point. Furthermore, the Christmas tree layout provides additional holdover and windage references when the shooter needs to make corrections without adjusting the turrets.

Because the reticle sits in the first focal plane, its subtensions maintain their relationship with the target as magnification changes. Therefore, the same reticle references remain available from 4x through to 32x.

MRAD Turrets and Zero Stop

The elevation and windage turrets use a 0.1 MIL click value. In addition, the elevation turret features a Zero Stop system for returning to the established zero.

The scope provides 32 MIL of elevation adjustment and 20 MIL of windage adjustment. Therefore, the available adjustment range provides flexibility for long-range shooting and hunting.

Each turret provides 10 MIL of adjustment per rotation. As a result, the shooter can make larger elevation corrections while keeping track of the turret position.

Akra Legacy X 4-32×56 FFP MRAD Scope

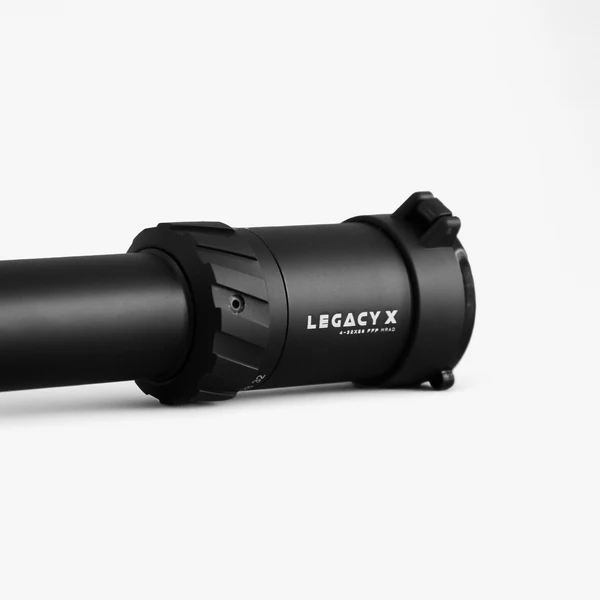

The scope uses an aircraft-grade aluminium body and a 34mm main tube. In addition, fully multi-coated lenses help reduce glare and support contrast across the optical system.

Furthermore, the Legacy X has an IPX7 waterproof rating and fogproof performance from -20°C to +50°C. The scope is also tested to withstand 10,000g of shock across 20,000 impacts. Therefore, it is designed for demanding outdoor and shooting conditions.

At approximately 378mm long and 1,035g in weight, the Legacy X is a substantial precision riflescope. For this reason, the rifle, mounting system and intended application should all be considered before installation.

Akra Legacy X for Hunting and Long-Range Shooting

The Akra Legacy X riflescope suits hunting, precision shooting, PRS, NRL22 and other long-range applications. In addition, the 4–32x magnification range allows the shooter to move from moderate magnification for field use to high magnification for longer-range target detail.

The R1X reticle provides holdover and windage references when the shooter needs to make corrections quickly. Meanwhile, the Zero Stop allows the elevation turret to return to the established zero after dialling for distance.

When mounting the scope, use compatible 34mm scope rings or a suitable 34mm scope mount. Also, check the required ring height and mounting position before installation.

For more scope options, browse our Rifle Scopes. You can also view our Scope Rings & Bases for compatible mounting solutions.

For another long-range option, see the Akra Oryx 6-36×56 FFP MRAD. In addition, comparing magnification range, reticle design and adjustment systems can help when selecting an optic for a particular rifle.

For additional manufacturer information, visit AKRA Precision Optics.

Key Features

• 4–32x magnification range
• 56mm objective lens
• First focal plane (FFP)
• R1X etched-glass MRAD reticle
• 0.2 MRAD reticle subtensions
• Floating illuminated centre dot
• Red reticle illumination
• ED-X glass
• Fully multi-coated lenses
• 0.1 MIL click value
• 32 MIL elevation adjustment
• 20 MIL windage adjustment
• 10 MIL travel per rotation
• Zero Stop
• 34mm main tube
• 90mm eye relief
• 100-yard field of view of 27.5°–3.4°
• IPX7 waterproof rating
• Fogproof from -20°C to +50°C
• 10,000g shock rating
• Tested to 20,000 impacts
• Aircraft-grade aluminium construction

Product Specifications

Brand: AKRA Precision Optics
Model: Legacy X 4-32×56 FFP MRAD
Magnification: 4–32x
Objective Lens: 56mm
Focal Plane: First Focal Plane (FFP)
Reticle: R1X Etched Glass (MIL)
Reticle Type: Christmas Tree MRAD
Reticle Subtension: 0.2 MRAD
Tube Diameter: 34mm
Click Value: 0.1 MIL
Travel per Rotation: 10 MIL
Elevation Adjustment: 32 MIL
Windage Adjustment: 20 MIL
Zero Stop: Yes
Eye Relief: 90mm
Field of View @ 100 yd: 27.5°–3.4°
Exit Pupil: 7.2–1.75mm
Length: 378mm
Weight: 1,035g
Illumination: Red
Battery: CR2032
Waterproof: IPX7
Fogproof: -20°C to +50°C
Shock Rating: 10,000g / 20,000 impacts
Glass: ED-X
Lens Coating: Fully Multi-Coated
Construction: Aircraft-grade aluminium

What’s Included

The package includes:

• Akra Legacy X 4-32×56 FFP MRAD riflescope
• 34mm medium Picatinny-style scope rings or ORYX Pro Mount, depending on the supplied configuration
• Throw lever
• Sunshade
• Set of scope flip-up caps
• Turret tool

Note: The illuminated reticle uses a CR2032 battery. The battery is not included.
